CS3600 Checkweigher
Robust, Dependable Accuracy.Ideal for manufacturers with heavy-load applications in challenging working environments. Can optionally integrate a metal detector for use as a Critical Control Point.
Robust Construction for Heavy Loads
Rugged construction to providesdependable and precise weighing of heavy loads. A very economical and efficient weighing solution.
Reduced Maintenance Downtime
Easy access to all major components for fast cleaning and maintenance. The belt design allows for quick and easy tracking, tensioning, and change out.
Optional Metal Detector Integration
Ideal for use as a Critical Control Point including separate rejects for contaminated or off-weight products and conveyor shut-down option.
Material No.: 6611627000
Features
Maximum Performance
A conveyor speed of up to 300 ft/min (91.4 m/min), a weighing range up to 220 lbs (100 kg), and very high weighing accuracy positions the CS3600 PlusLine at the forefront of heavy load checkweighing technology.
Data Collection to Support Compliance
More than 10 data communication protocols including Ethernet, Fieldbusand OPC technologies to provide the fullest suite of data collection tools available. Supports Industry 4.0 integration projects.
Maximum Operator Accessibility
The 7 inch or 12 inch multilingual touchscreen can be positionedin proximity to the machine or mounted in front of the conveyor for maximum operator comfort and safety.

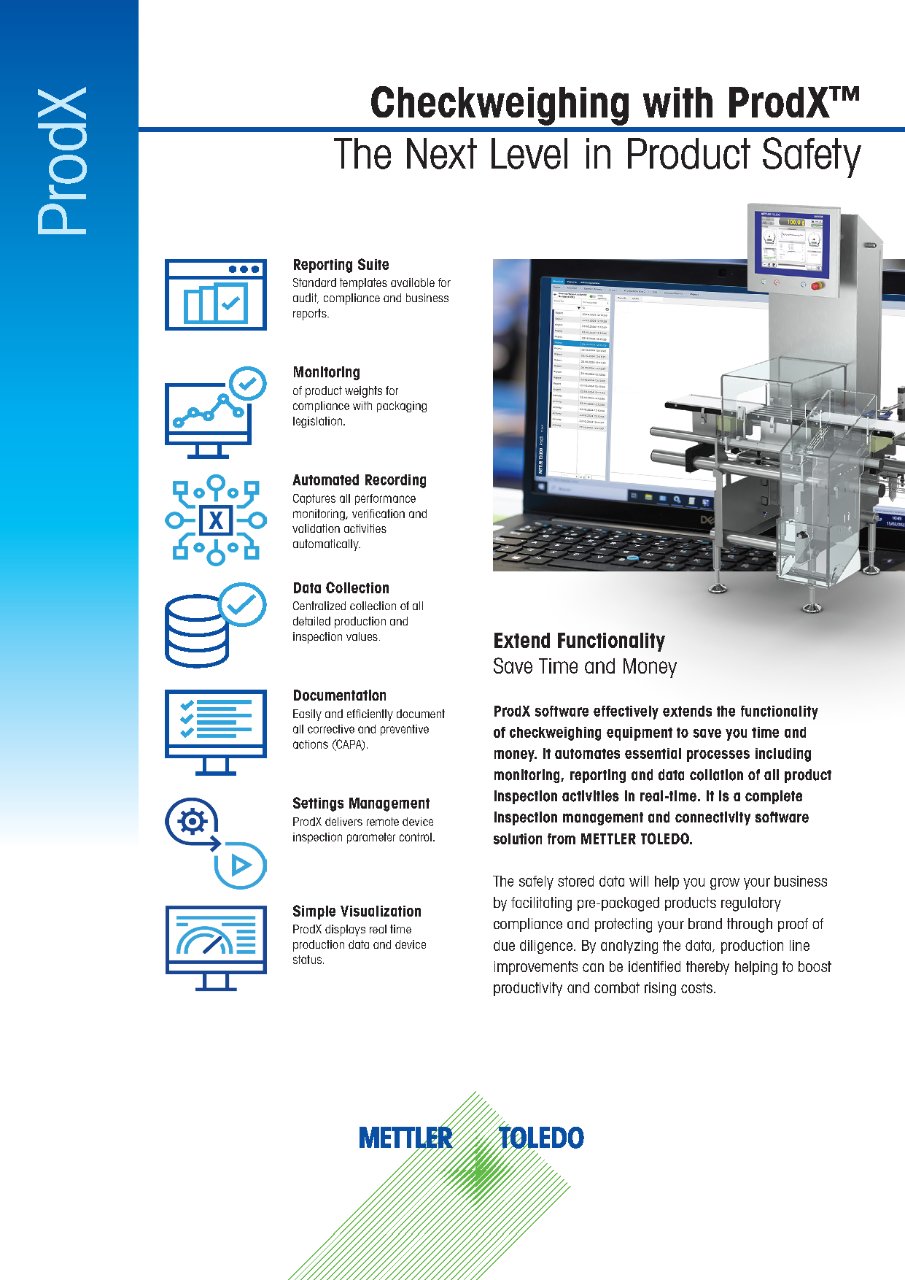

ProdX - The Next Level in Product Safety
ProdX software saves you time and money by automating essential quality control processes. The safely stored data can help you grow your business in supporting regulatory compliance and brand protection by proving due diligence.
Global Service Support
A global network of service experts provides fast remote and on-site support. Our comprehensive service offering supports regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Specifications
Specifications - CS3600 Checkweigher
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing |
| Max Product Width | 700 mm |
| Max Weighing Zones | 3 |
| Weighing Technology | Strain Gauge |
| HMI | 12" Touchscreen 7" Touchscreen |
| Packaging Type | Bags Bottle Bundles Cardboard Cartons Cases Pallets |
| Product Flow | Conveyor |
| Inspection Application | Completeness Check Weight Control |
| Product Characteristic | Deep Frozen Dry Heavy Weight Packages Wet |
| Industry | Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics |
| Weighing Accuracy | from ±1 g |
| Industry Segment | Agriculture and Bulk Foods Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Shipping and Mailing Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| Max Product Weight | 100 kg |
| Max Line Speed | 150 m/min |
| Max Throughput | 150 ppm |
