Water purity is paramount in pharmaceutical manufacturing. Even tiny amounts of organic contaminants can jeopardize product quality and patient safety, not to mention the hefty costs involved in rectifying the issue. That's why following strict regulations, like those outlined in chapter <643> of the United States Pharmacopeia (USP), is essential.
While traditional methods for monitoring Total Organic Carbon (TOC) have been the go-to in the industry, real-time monitoring offers enhanced capabilities, providing real-time information needed for effective management of pharmaceutical-grade water. This approach can not only reduce risks but also provide superior process control.
The USP <643> standard is a critical framework for ensuring the purity of water used in pharmaceutical manufacturing processes. It outlines specific requirements for TOC levels, a key indicator of organic contamination. By adhering to USP <643>, pharmaceutical companies can mitigate risks associated with product quality, efficacy, and patient safety.
TOC represents the amount of carbon bound in organic compounds present in water. Even trace amounts of organic contaminants, a measure of organic molecules present, can impact product stability, potency, and sterility. USP <643> establishes clear limits for TOC levels based on the intended use of the water.
To ensure accurate TOC measurement in pharmaceutical water systems, USP <643> provides guidance on acceptable analytical methods. While the standard does not endorse or limit one method over another, it specifies criteria for qualifying TOC instrumentation and interpreting results. These criteria include:
SST involves challenging the TOC instrument with different organic chemicals to evaluate its measurement capability. The two chemicals used are sucrose and 1,4-benzoquinone. The instrument's response to these chemicals should be between 85% and 115%.
TOC = TC - IC (Total Organic Carbon = Total Carbon - Inorganic Carbon) is the calculation used to determine the Total Organic Carbon content in water. It involves measuring the total carbon (TC) and then subtracting the measured inorganic carbon (IC). The difference between the two represents the Total Organic Carbon.
USP <643> requires TOC instruments to distinguish between the inorganic and organic carbon by detecting the resulting CO2.
Adhering to USP <643> requirements through traditional methods, such as manual sampling, can present significant challenges for pharmaceutical manufacturers. These challenges often hinder efficient operations, increase costs, and potentially compromise product quality.
Time-consuming processes: Traditional methods typically involve manual sampling, sample transportation to a laboratory, and analysis, leading to delays in obtaining results. This time-consuming process can impact production efficiency and increase the risk of non-compliance.
Labor-intensive: Collecting and analyzing water samples requires dedicated personnel, adding to operational costs and increasing the potential for human error.
Limited data points: Traditional methods provide only snapshots of water quality at specific sampling points, potentially missing critical TOC fluctuations. This limitation can affect the overall assessment of water purity and compliance.
Reactive approach: Relying on periodic sampling and analysis often leads to a reactive approach to water quality management. By the time an issue is identified through laboratory analysis, the contaminated water may have already been used in production, potentially resulting in wasted materials, product recalls, and regulatory penalties.
To overcome the challenges posed by traditional USP <643> compliance methods, real-time TOC monitoring emerges as a transformative solution. By providing continuous, uninterrupted data on TOC levels, this technology empowers pharmaceutical manufacturers to achieve and maintain superior water quality.
Real-time TOC monitoring offers several key advantages in meeting USP <643> regulations:
Continuous monitoring enables the immediate identification of TOC excursions, allowing for prompt corrective actions to prevent product contamination and ensure compliance with USP limits. By swiftly addressing deviations from acceptable TOC levels as defined by USP <643>, manufacturers can minimize the risk of compromised product quality, costly recalls, and regulatory non-compliance.
By providing real-time data, manufacturers can optimize water purification processes, reducing the risk of excursions and ensuring consistent water quality that meets USP requirements. Through continuous monitoring, potential issues can be identified and addressed before they impact product quality, allowing for fine-tuning of purification parameters to maintain adherence to USP <643>.
Automated data collection and analysis streamline workflows, freeing up personnel for other critical tasks while maintaining compliance with USP <643>. Real-time monitoring eliminates the need for manual sampling and laboratory analysis, reducing labor costs and increasing operational efficiency, ultimately contributing to overall process efficiency and compliance with USP regulations.
Real-time data provides a comprehensive record for regulatory audits, demonstrating consistent adherence to USP requirements. By generating a continuous audit trail, manufacturers can easily demonstrate compliance with regulatory standards, mitigate the risk of non-compliance penalties, and streamline audit processes.
The wealth of data generated by real-time monitoring enables informed decision-making about water management and process optimization, ensuring ongoing compliance with USP <643>. By analyzing TOC trends and patterns, manufacturers can identify opportunities for process improvement, reduce water consumption, and optimize resource allocation while maintaining adherence to USP <643> regulations.
Proactive identification of potential issues through real-time monitoring safeguards against product contamination and regulatory non-compliance, ultimately protecting the integrity of the pharmaceutical manufacturing process and ensuring adherence to USP <643>. By minimizing the risk of excursions and non-compliance, manufacturers can safeguard their reputation, protect patient safety, and maintain a strong regulatory compliance posture.
By addressing the critical factors outlined in USP <643>, real-time TOC monitoring serves as a cornerstone for achieving and maintaining compliance. This technology helps pharmaceutical manufacturers to produce high-quality products while mitigating risks and optimizing operations.
While real-time TOC monitoring provides invaluable insights into water quality, effective sampling strategies are also essential for ensuring compliance with USP <643>. To optimize sampling practices, it's crucial to understand the distinction between quality control (QC) and process control (PC) in the context of TOC measurement.
To demonstrate QC compliance for any water test, the water needs to be sampled as it is used in production (USP <1231> and USP <61>).
Due to the homogeneous nature of chemical contaminants, a TOC analyzer can be used at the return loop for both process control and quality control.
POU sampling may be necessary in certain cases but can be reduced or eliminated for chemical properties.
On-line TOC is more representative of actual water quality than off-line sampling, as chemical purity can degrade over time.
Continuous monitoring of TOC levels allows for proactive process control and early detection of issues.
The homogeneity of organic impurities in water systems allows for flexible sampling strategies. To ensure effective TOC monitoring, pharmaceutical manufacturers can combine on-line TOC analysis at the return loop with targeted POU sampling where necessary. This approach provides the benefits of both real-time data and accurate representation of water quality at critical points.
Additionally, understanding the distinction between QC and PC is essential for optimizing sampling practices. By leveraging these insights, manufacturers can enhance their TOC monitoring strategies, improve process control, and ensure compliance with USP <643>.
Now, let's dive into a real-world success story to see these concepts in action.
TOC Excursions Missed
A leading pharmaceutical manufacturer faced consistent quality control issues with their water system, which was impacting its new antibiotic production. Its traditional grab sampling method for TOC analysis, outlined in USP <643>, often resulted in missed excursions and reactive problem solving. This led to several near misses with product contamination and potential non-compliance issues, which could have jeopardized the development and release of their innovative antibiotic.
Root Cause Identified
Sarah, a data-driven and quality-focused engineer at the pharmaceutical company, grew increasingly frustrated with the recurring quality issues plaguing their antibiotic production. The root cause of these issues was often traced back to fluctuations in TOC levels within the water used for the manufacturing process. Recognizing the limitations of the traditional grab sampling approach, which often failed to capture these fluctuations, she decided it was time to adopt a real-time TOC monitoring system to ensure the integrity of their antibiotic production process.
Solution Found
After careful research and collaboration with a reputable supplier, Sarah implemented a real-time TOC monitoring system for the pharmaceutical company. This involved both on-line TOC monitoring at the return loop and periodic POU sampling. The system was easy to integrate into their existing water purification infrastructure, providing continuous data on TOC levels throughout the production process. This eliminated the need for frequent grab sampling, reducing workload for her colleagues, and ensuring more consistent and trustworthy TOC data.
Changes in TOC Caught as They Happen
With real-time TOC monitoring in place, the pharmaceutical company could now proactively monitor its water quality, identifying and addressing even the slightest fluctuations in TOC levels before it became a major concern. This proactive approach significantly reduced the risk of product contamination and ensured consistent adherence to USP <643> regulations, safeguarding the development and release of the new antibiotic.
The benefits extended beyond regulatory compliance. Real-time monitoring allowed the pharmaceutical company to optimize their water purification processes, leading to reduced water consumption and waste generation. Additionally, the data provided valuable insights for predictive maintenance, enabling them to anticipate potential equipment issues and minimize downtime, ensuring uninterrupted production of their antibiotic.
Key Points:
QC and PC: The implementation of real-time TOC monitoring and optimized sampling strategies combined QC and PC approaches, ensuring comprehensive water quality management.
Improved Decision-Making: By leveraging both real-time data and targeted sampling, the company was able to make more informed decisions about water quality and process control.
Enhanced Regulatory Compliance: The combination of QC and PC practices strengthened the company's ability to demonstrate compliance with USP regulations.
While real-time TOC monitoring is instrumental in achieving and maintaining USP <643> compliance, its advantages extend far beyond regulatory adherence. By providing comprehensive water quality insights, this technology offers significant benefits for pharmaceutical manufacturers.
Implementing a real-time TOC monitoring system requires careful consideration and execution. Selecting the optimal TOC analyzer is critical, necessitating a meticulous evaluation of factors such as measurement range, accuracy, response time, and compatibility with existing infrastructure. The analyzer needs to work seamlessly with your water system to keep the data flowing.
Effective data management is a must for capturing, storing, and analyzing TOC data. It's essential to train your team on how to use the system, interpret data, and troubleshoot any issues. To make sure you're following regulations, you need to validate and qualify your TOC monitoring system. By planning and executing the implementation process, pharmaceutical manufacturers can fully harness the potential of real-time TOC monitoring to achieve superior water quality and compliance.
Partnering with an experienced provider can streamline the implementation process and provide ongoing support. They can guide you through selecting, installing, and optimizing the system, making the transition to real-time TOC monitoring easier.
By embracing real-time TOC monitoring, pharmaceutical manufacturers can usher in a new era of water quality management. This advanced technology empowers organizations to achieve and maintain stringent USP <643> compliance while unlocking a multitude of additional benefits. Through early detection, proactive process control, and data-driven decision making, real-time TOC monitoring safeguards product quality, enhances operational efficiency, and mitigates risks.

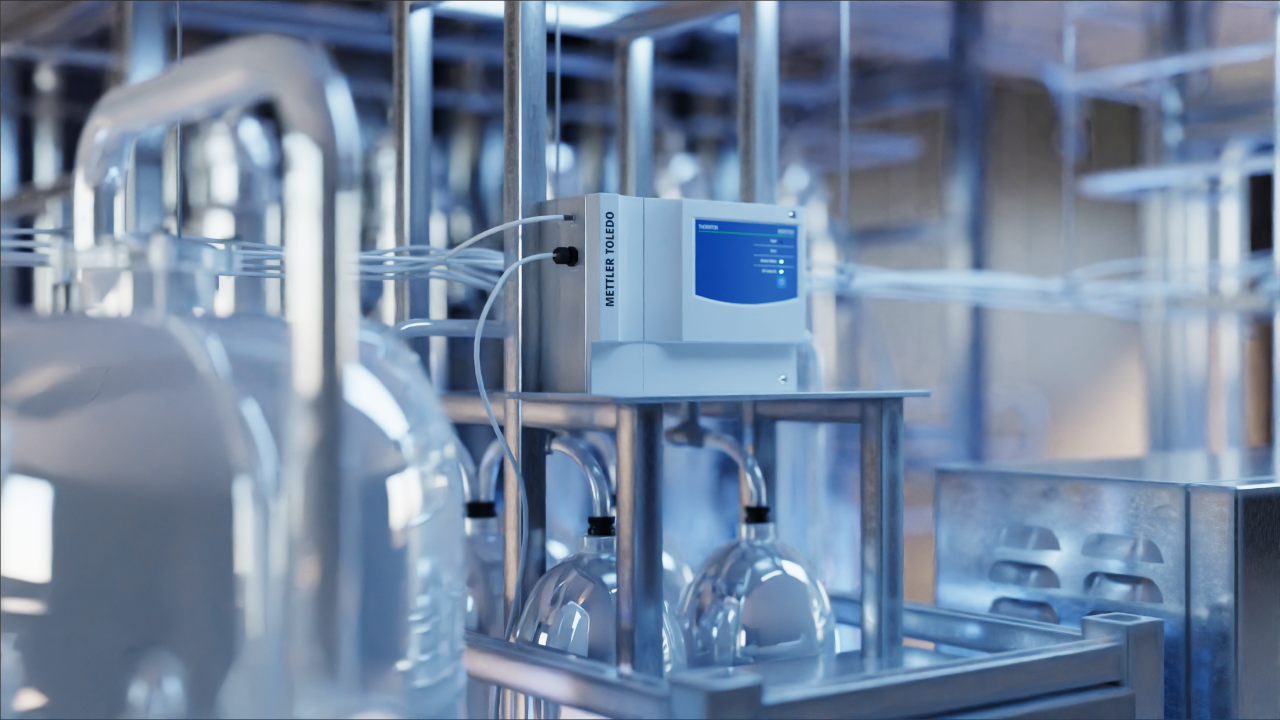

To get the best out of real-time TOC monitoring, consider partnering with an expert like METTLER TOLEDO. Our on-line TOC analyzers are designed specifically for the pharmaceutical industry, providing real-time monitoring and results. Our team can help you choose the right system, get it up and running quickly, and offer ongoing support.
By investing in real-time TOC monitoring, you're showing your commitment to water quality excellence. This protects your brand reputation and ensures you're delivering safe and effective products. With this smarter approach, you can easily meet USP <643> compliance requirements and achieve exceptional water quality control.
