Cond Sensor InPro7108-VP-PEEK
4-Electrode Conductivity Sensor.The InPro 7108-VP-PEEK utilizes 4-electrode technology to expand its measurement range in medium to high conductivity solutions.
Wide Measuring Range
WideRange technology makes the sensor suitable for many applications; rinsing, control of dilution processes, and monitoring of salt content.
Withstands Sterilization Cycles
The InPro 7108 conductivity sensor can withstand the most rigorous CIP/SIP procedures in the food and pharmaceutical industries.
Withstands Aggressive Solutions
This conductivity sensor has been especially designed and ruggedly built to withstand even the most aggressive chemical solutions.
Material No.: 52002002
Features
Compact Sensor Design
The conductivity sensor has a very compact design, which allows installation even in small pipes. At the same time, the sensor design also meets the highest hygienic requirements.
Process Reliability and Easy Connection
The IP68 rated VarioPin connector system ensures excellent signal transmission and avoids problems associated with humidity.
Low Maintenance Due to Flat Surface
The smooth flat surface design prevents any significant fouling. This increases the reliability of the sensor, and only low maintenance is required.
Specifications
Specifications - Cond Sensor InPro7108-VP-PEEK
| Temperature Sensor | PT 1000 |
| Cell Constant | 0.25 cm-1 |
| Cable Connection | Vario Pin (IP 68) |
| Cell Constant (nominal) | 0.25 cm–1 |
| Measurement Technology | Conductive |
| Process Connection | 1 inch NPT |
| Sterilizable | Yes |
| Operating Temperature (Fahrenheit) | 14...284 °F |
| Operating Temperature (Celsius) | -10...140 °C |
| Mechanical Pressure Resistance (PSI) | 250 psi (77 °F), 100 psi (203 °F) |
| Model Family | 4-electrode sensor |
| Hazardous Area Approvals | Yes |
| Measured Pressure Resistance | 0 – 100 psig @ 203 °F 0 – 246 psig @ 77 °F (0 – 17 barg @ 25 °C 0 – 7 barg @ 95 °C) |
| Electrode Material | Sterilizable, 316 L or HA-C22 |
| Primary Media/Application | Chemical Processes Other Industrial Processes Other Water Processes Wastewater |
| Hygienic/Biocompatibility Approvals | No |
| Mechanical Pressure Resistance (Bar) | 17 bar (25 °C), 7 bar (95 °C) |
| Sensor Material | PEEK (FDA) |
| System accuracy | ± 5 % or better |
| Measurement Range | 0.02-650 mS/cm |
Documentation
Accessories
M300 Process & Water Transmitters
This single-channel, 1/2 DIN size M300 transmitter is designed for standard process applications. It has a touchscreen interface and integrates with pH, ORP, DO, and conductivity sensors.
Material No.: 30280771
This two-channel, 1/2 DIN size M300 transmitter is designed for standard process applications. It has a touchscreen interface and integrates with pH, ORP, DO, and conductivity sensors.
Material No.: 30280773
This single-channel, 1/4 DIN size M300 transmitter is designed for standard process applications. It has a touchscreen interface and integrates with pH, ORP, DO, and conductivity sensors.
Material No.: 30280770
This two-channel, 1/4 DIN size M300 transmitter is designed for standard process applications. It has a touchscreen interface and integrates with pH, ORP, DO, and conductivity sensors.
Material No.: 30280772
M400 Process Transmitter
The multi-parameter M400 transmitter series features Intelligent Sensor Management (ISM) technology for measuring pH / ORP and conductivity.
Material No.: 30374111
The multi-parameter M400 transmitter series features Intelligent Sensor Management (ISM) technology for pH/ORP, DO, CO2, and conductivity measurement.
Material No.: 30374112
The multi-parameter M400 transmitter series features Intelligent Sensor Management (ISM) technology for pH/ORP, DO, gas O2, CO2, TDL, and conductivity measurement.
Material No.: 30374113
This M400 2-wire transmitter provides the highest reliability and process safety in hazardous and non-hazardous areas. Foundation Fieldbus communication provides easy integration of sensor diagnostics into your process control system.
Material No.: 30026616

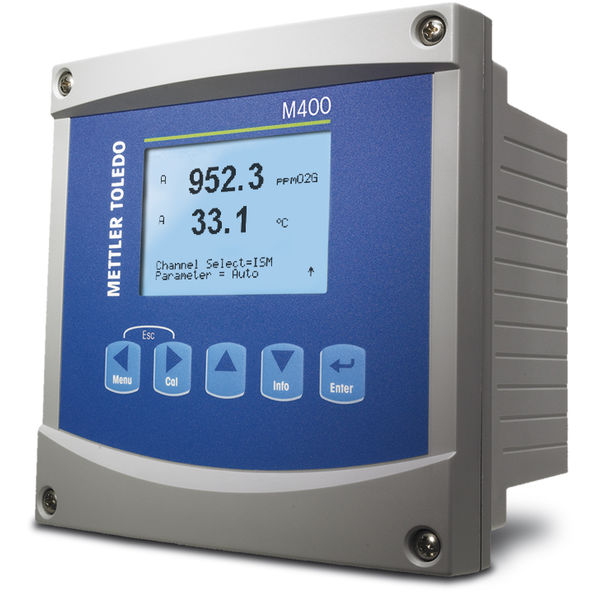

This M400 2-wire transmitter provides the highest reliability and process safety in hazardous and non-hazardous areas. Profibus PA communication provides easy integration of sensor diagnostics into your process control system.
