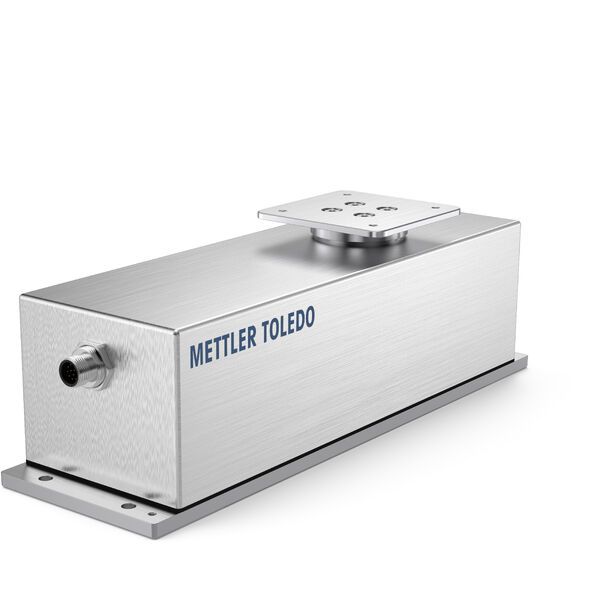

Weigh Module SPD12002
Cost-Efficient, High-Capacity Solution.The SPD weigh modules offer multi-line weighing for higher capacity battery filling applications.
Save Valuable Machine Space
The compact width of 84 mm enables a small pitch to allow parallel multi-line weighing on limited space.
High Capacity with Reliable Precision
With a high capacity of 12 kg, SPD is perfect for filling various prismatic battery cells while ensuring high precision with a readability of 0.01 g.
Simple Integration and Configuration
A computer-based software for parameterization, diagnostics and data backup makes getting started easy.
Material No.: 30966617
Features
Minimize Contamination Risk
Strict content control of zinc and copper reduces the risk of cross-contamination in Li-ion battery production.
Specifications
Specifications - Weigh Module SPD12002
| Maximum Capacity | 12.2 kg |
| Readability | 0.01 g |
| Repeatability (sd) @ nominal load | 0.01 g |
| Interfaces | RS232 RS422 |
| Protection Rating | IP42 |
| Dimensions (LxHxW) | 275 mm x 91 mm x 84 mm |
| Product Line | SPD |
| Internal Adjustment | No |
| Internal Electronics | Yes |
| Maximum Preload | 200 g |
| Legal for Trade | No |
| Washdown | No |
| Power Supply | 12 to 24 V DC |
| Interface Update Rate (Max) | 92 Hz |
